FIRE-resistant glazing system Promat SYSTEMGLAS has been chosen for the replacement of a large multi-pane window as part of a refurbishment project at Scotland’s National Museum of Rural Life in East Kilbride.

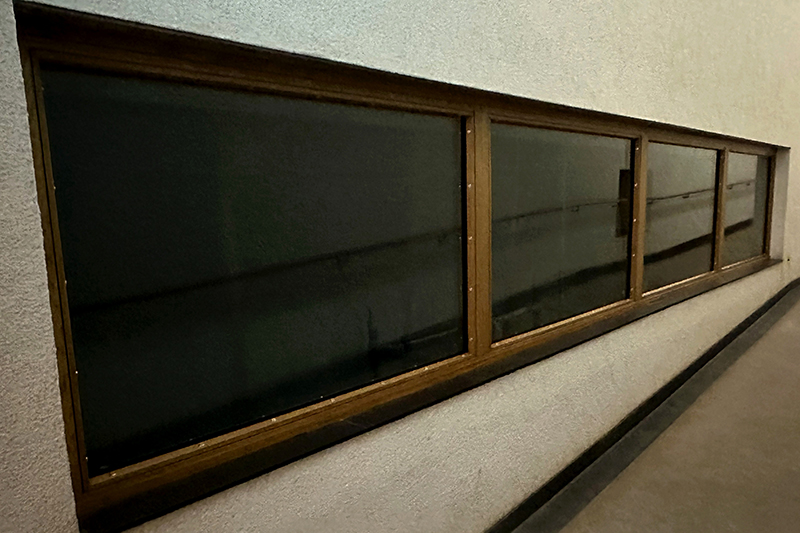

Spanning nearly seven metres with a height of one metre, the new viewing window is said to both improve aesthetics and acoustics, and also help optimise fire safety within the building.
A museum, historic farmhouse and working farm, the National Museum of Rural Life explores Scotland’s rural history. On display is Scotland’s largest collection of tractors, combine harvesters and farming machinery, while the farm is home to Ayrshire, Aberdeen Angus and Highland cattle, Tamworth pigs, sheep, hens and Clydesdale horses.
Working with Hoskins Architects, Promat UK was tasked with developing a fire rated solution for the window in the main exhibition hall. The brief demanded EI (integrity and insulation) protection for 60 minutes in line with the fire strategy.
The timber frame SYSTEMGLAS Ligna EI60 system was chosen, incorporating the intumescent Promat Promaseal-PL Strip around the perimeter of the frame as part of a tested solution.

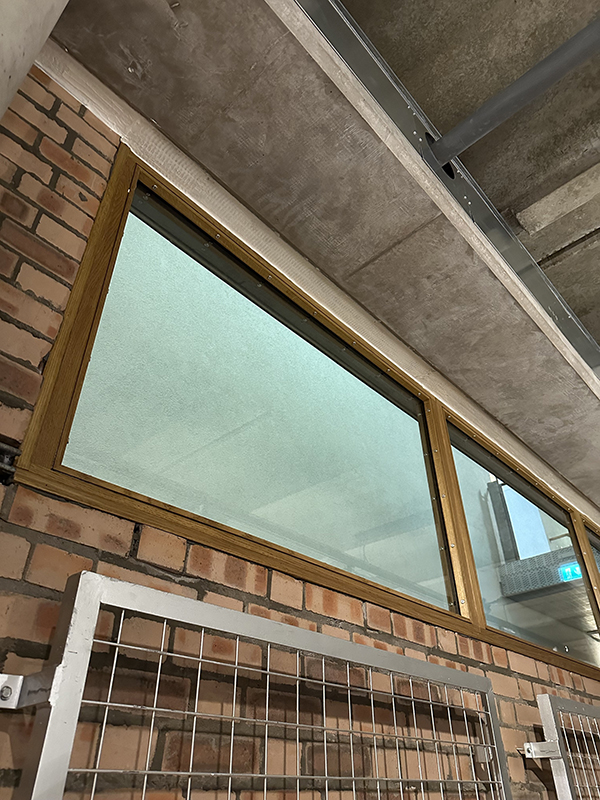

The window was split with three vertical mullions, with Promat F1 glass used in line with its fire test certification which confirms its suitability for use in a landscape orientation.
The resulting glazing provides an EI60 fire rating with the added benefit of UV stability, as well as an acoustic rating of 45dBrw.
Main contractor FES engaged with Promat SYSTEMGLAS recommended installer, Kent-based Rated Solutions, to complete the installation of the window, as well as provide a Promat timber fire rated door and over panel within the cafeteria area.
Rated Solutions has worked on a number of fire resistant glazing contracts with Promat in recent years, including the refurbishment of the Victorian Market in Inverness.
Fodos Joannides from Rated Solutions said, “This was another interesting SYSTEMGLAS project that we were proud to be involved with given the unique nature of this museum. The Ligna system, as with all the versions in the SYSTEMGLAS range, is excellent to work with, giving clients finished windows and doors that tick all the boxes.”
