‘Hi-tech’ tunnelling machine utilised at landmark Scottish Water project in Glasgow

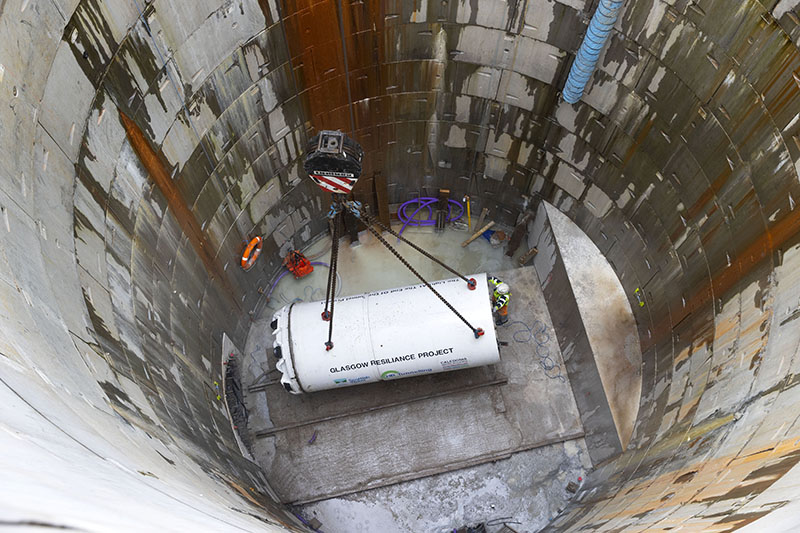

Image credit: SNS/Scottish Water

A tunnel boring machine (TBM) has been used to complete the installation of a key part of a new trunk water main in Glasgow.

Located beneath a motorway and railway, the Scottish Water project is tipped to benefit almost one million customers.

The TBM has installed a 252 metre-long tunnel and section of water main from Broomloan Road in Ibrox to the north side of Bellahouston Park. The tunnel, which goes below the M8 motorway, Paisley Road West and the Glasgow-Ayr railway line, is part of more than seven miles of new water mains being installed in a project which will connect the Glasgow area’s network and the system in Ayrshire to ‘increase resilience and protect supplies’ for customers.

The TBM installed the tunnel at a depth of up to 20 metres below ground. It excavated about 1,311 tonnes of rock, including sandstone and mudstone which went to landfill, and installed a total of 100 sections of pre-cast concrete pipes each measuring 2.5 metres in length and taking the total weight of the tunnel to about 500 tonnes.

Connecting the Glasgow and Ayrshire networks will provide a two-way water supply between the Milngavie Water Treatment Works (WTW) system, which provides water for more than 700,000 people across much of the Glasgow area, and the Bradan WTW system which supplies more than 200,000 customers across much of Ayrshire. It will also benefit almost 50,000 customers in East Renfrewshire.

Scottish Water explained that in the event of a disruption to water supply in either Ayrshire or Glasgow, the new system will allow millions of litres of water to be transferred in either direction, minimising the impact if there is a burst main or other operational issue.

The project is being delivered by Caledonia Water Alliance and is expected to be completed in 2024.

Image credit: SNS/Scottish Water

The new water main is being installed in the Ibrox, Mosspark, Pollok, Priesthill, Nitshill and Parkhouse areas of Glasgow and will run from Ibrox to a reservoir storage tank in the Parkhouse/Darnley area. A new pumping station is being built at Ibrox which will push water to the existing pumping station in Parkhouse/Darnley for onward distribution to Ayrshire.

The design of the new network incorporates carbon reducing construction materials and methods including self-restraining pipe. Solar panels will also offset the power demands at the new Ibrox pumping station, with the new mains using gravity to reduce power use by 60%.

Four tunnels – one at Ibrox under the M8 motorway and the Glasgow-Ayr railway line, another under the Paisley Canal railway and White Cart Water, another under the Glasgow-Barrhead-Kilmarnock railway and one under the Levern Water will form part of the route of the new main. The tunnels under the Glasgow-Barrhead-Kilmarnock railway and the Levern Water have already been completed.

The start of the construction of the tunnel at Ibrox, which is the biggest of the four and was carried out for CWA by HB Tunnelling Ltd of Doncaster, was witnessed by three school pupils from Ibrox Primary, who took part in a competition to give the TBM a female name, in accordance with tunnelling tradition.

Primary five pupil Manha Raheel won the competition and the TBM was named Tytana.

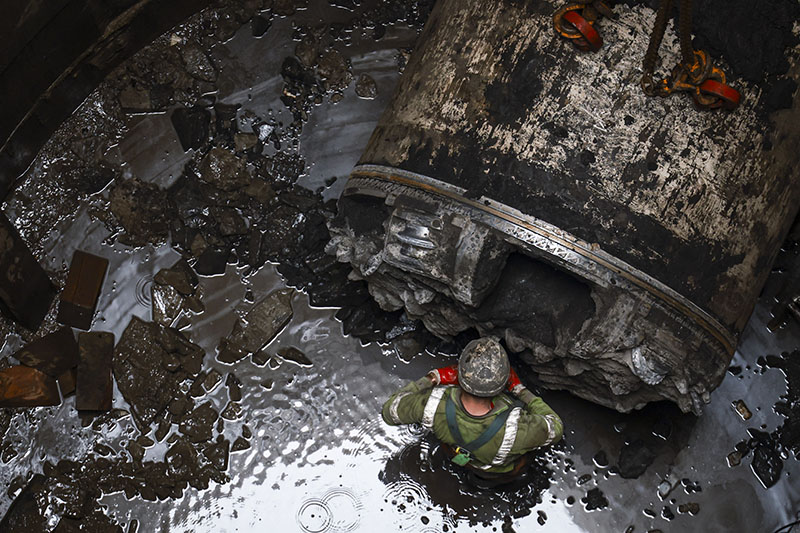

The hydraulically-operated TBM worked 24-7 and completed its breakthrough when the cutting head emerged at a point in Bellahouston Park. Manually operated by a driver at the front, the TBM’s rotating cutting head cut into the earth and rock and the material was transported along a conveyor belt to a skip on the TBM before being removed by crane to the surface.

After the tunnel was installed, 22 sections of water main made from ductile iron were placed inside it, using a crane to lower the pipe sections down and a winch to pull them through the tunnel and into position before they were grouted and sealed.

Dominic Flanagan, Scottish Water delivery manager, said, “The installation of this particular part of the new water main using the TBM is arguably the highlight of this project so far and we are delighted to have completed it. Everything went well with this very challenging and complex operation and we were really pleased that our guests from Ibrox Primary school FC were able to join us and see the tunnelling start.

“Linking our supply systems in Glasgow and Ayrshire will ensure that high quality drinking water can continue to be supplied to current customers and for generations to come. The investment in below-ground infrastructure will also support the continued development above ground in communities across these areas and will enable them to continue to grow and thrive.”
